DESIGN, FUN, PERFORMANCE.
The new Grand Soleil 40 has all the credentials to replicate the great success of the GS 44, winner of the last ORC World Championship. While maintaining the feeling of style, elegance and safety seen throughout the range. A fast and responsive boat that reflects its sporting personality in the performance on the water. Grand Soleil 40 will be presented in an exclusive World Première during Cannes Yachting Festival 2022.
The hull lines are an evolution of the concepts studied for the GS 44, giving maximum attention to the balance of volume as the heel increases. The bow profile remains very fine to maintain good performance in light airs and ensure a smooth passage through the waves. As on the GS 44, great importance was placed on the aft positioning of the shaft, enabling Nauta Design to develop an innovative layout and obtaining a benefit on both performance and comfort.
RELAXATION AND PERFORMANCE, 40 FEET OF GRAND SOLEIL DNA

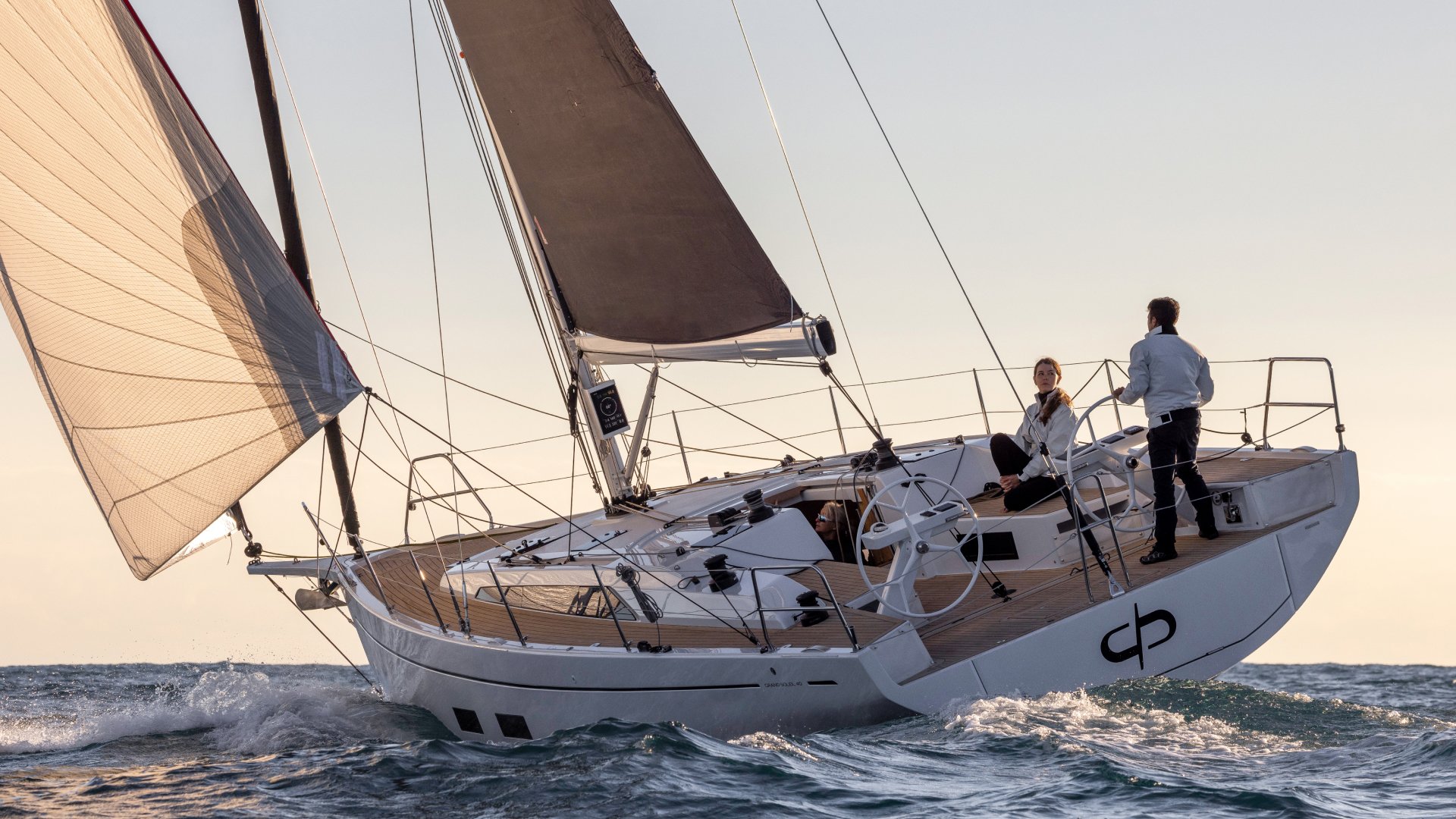

The winning performance is always at hand on the new GS 40. The deck plan of the Performance version includes 4 winches as standard: two on the coachroof and two next to the helm positions. The self-tacking jib, also as standard, is equipped with a recessed track, while the mainsheet is positioned to a fixed point in the cockpit. A boat that is easy to use, luxurious and at the same time competitive in it’s performance.
RACE, THE LEGACY OF A WORLD CHAMPIONSHIP RANGE
The Race version amplifies the competitive potential of a boat already geared to racing. In this version the deck plan has been adapted to optimize sail performance, including the addition of 2 winches, race bowsprit, a hydraulic backstay, jib tracks in transverse position and a recessed mainsail track. The standard draft is already designed from a racing point of view (IRC) with a depth of 2.4 meters, cast iron blade and lead torpedo. Also available on the GS 40 are two other keel options: the first 2.1 meters optimized for ORC competitions, the second shallow draft of only 1.85 meters. Both the race and performance versions include a stern platform that can be opened electronically, equipped with a ladder for easy boarding to the swim platform.
HIGH QUALITY FINISHES AND TIMELESS DESIGN

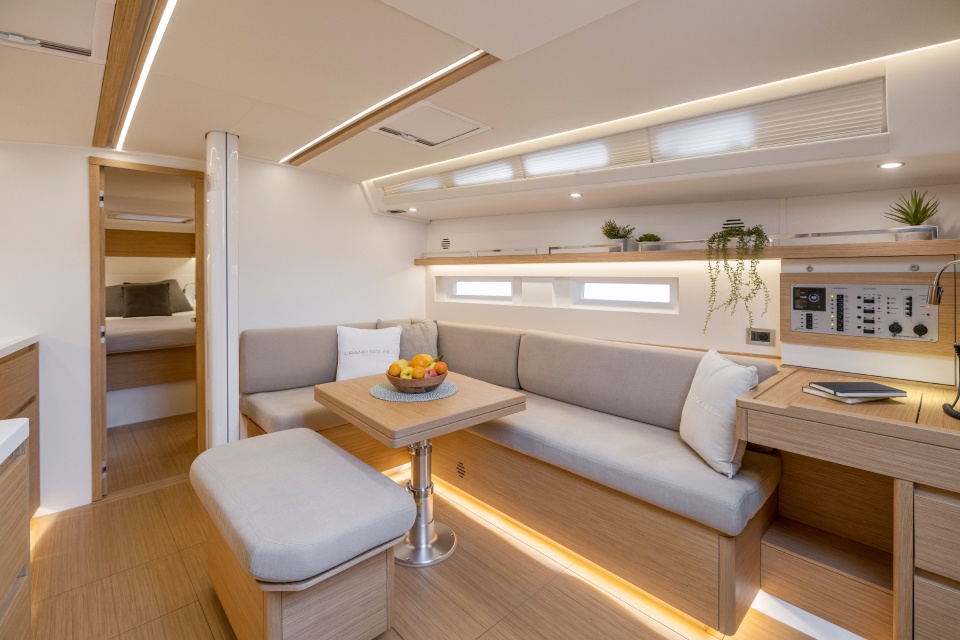

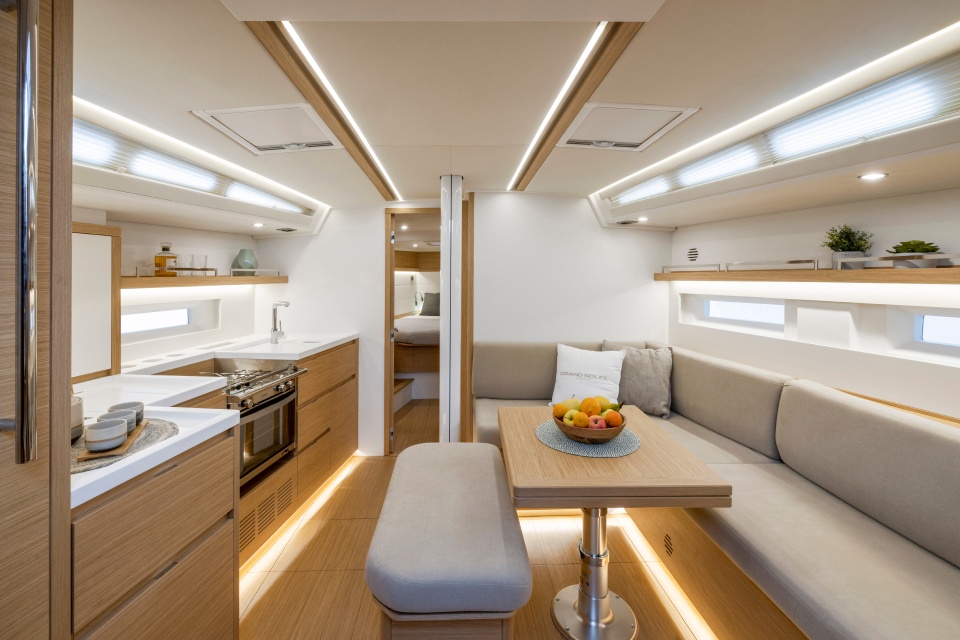

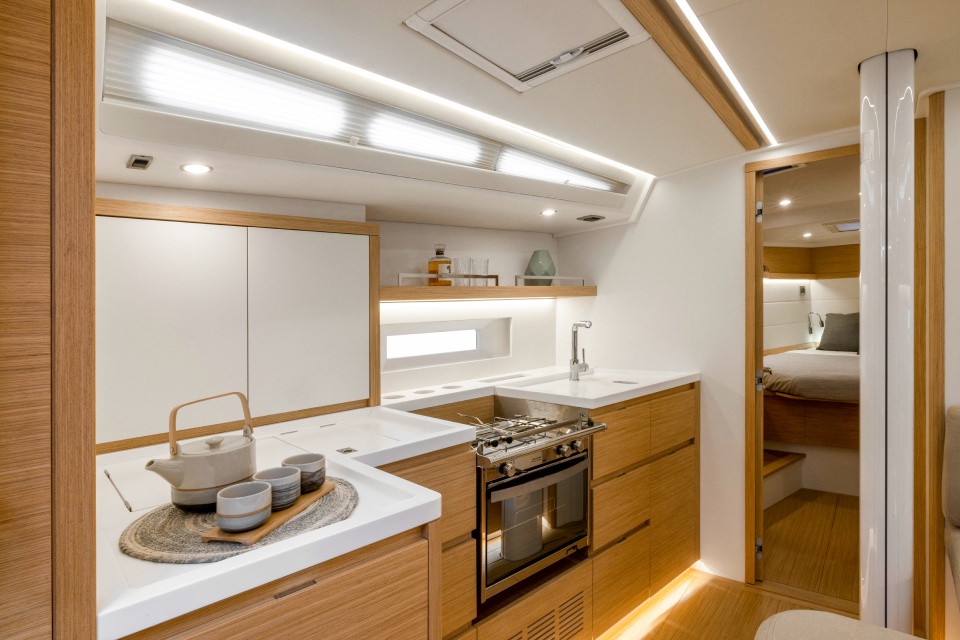

Going below deck you enter a luxurious and fresh space, always functional in its details. Wide, practical, efficient interiors both for cruising use and for moving with agility during regattas. The interior has also been designed to maximize the space between the living and galley areas. Relaxation and comfort for the owner and their guests when cruising can also meet the needs of the regatta sailors.
A SET UP WITH NO COMPROMISES

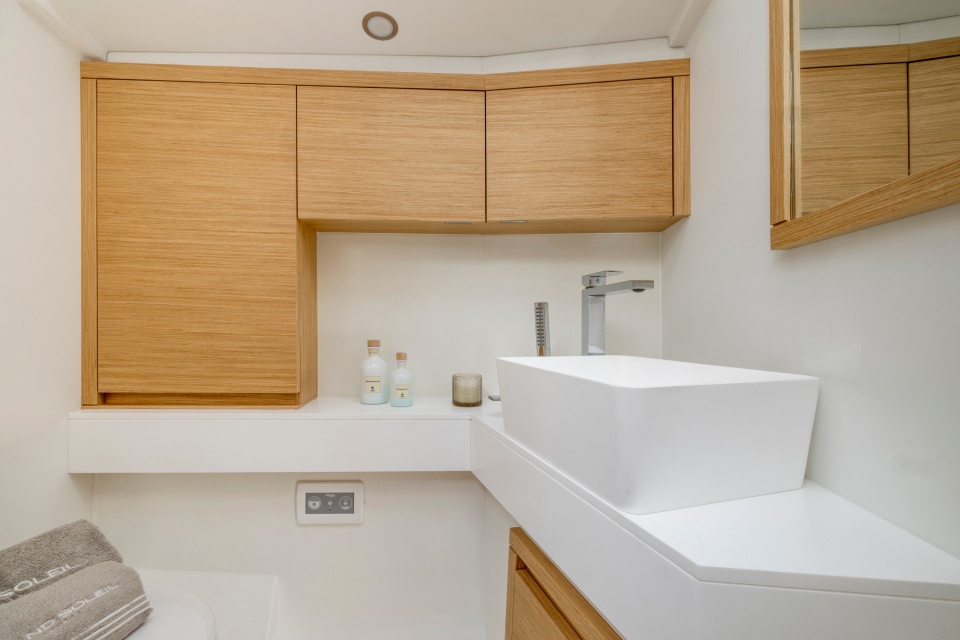

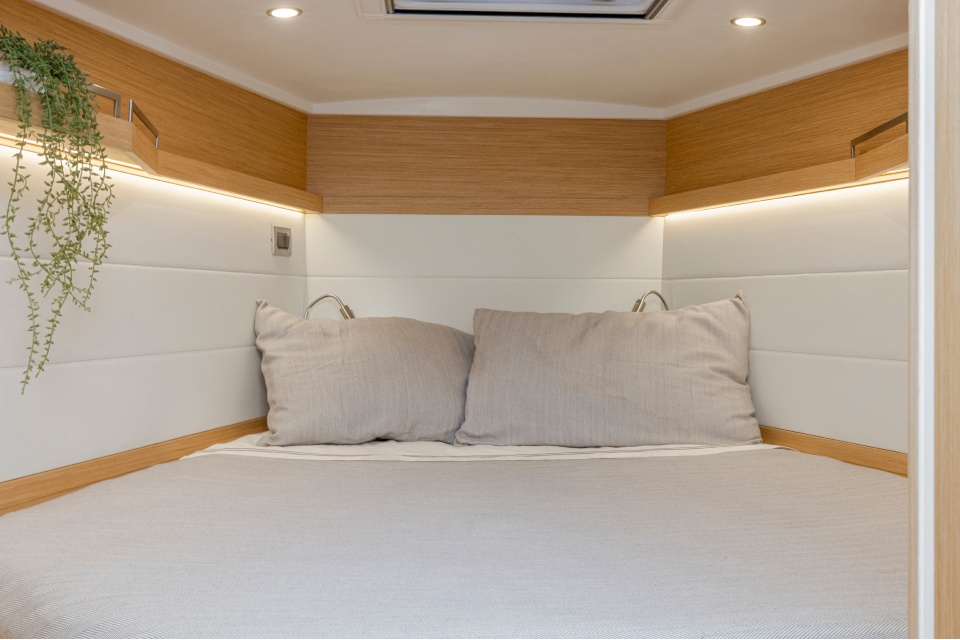

In the Standard version, we can find three cabins and a bathroom, plus a technical compartment dedicated to the stowage of racing equipment. On the other hand, the Optional version has three cabins and two bathrooms.
TECHNICAL INFO
HULL LENGTH
11.90 M (39.04 FT)
OVERALL LENGTH
12.90 M (42.32 FT)
Optional: 13.60 m (44.62 ft)
MAX BEAM
4.07 M (13.35 FT)
DISPLACEMENT
8.7 T approx (17400 LB approx)
BALLAST
2.5 T (5000 LB)
CE CATEGORY
“A” OCEAN
WATER TANK
300 L (79 GAL)
FUEL TANK
170 L (45 GAL)
DRAFT
2.40 M (7.87 FT)
Optional: 2.10 m (6.89 ft)
Optional: 1.85 m (6.07 ft)
SAIL AREA
90 M² (969 FT²)
ENGINE
30 HP
Optional: 50 HP
HULL LENGTH
OVERALL LENGTH
MAX BEAM
DISPLACEMENT
BALLAST
CE CATEGORY
WATER TANK
FUEL TANK
DRAFT
SAIL AREA
ENGINE
11.90 M (39.04 FT)
12.90 M (42.32 FT)
Optional: 13.60 m (44.62 ft)
4.07 M (13.35 FT)
8.7 T approx (17400 LB approx)
2.5 T (5000 LB)
“A” OCEAN
300 L (79 GAL)
170 L (45 GAL)
2.40 M (7.87 FT)
Optional: 2.10 m (6.89 ft)
Optional: 1.85 m (6.07 ft)
90 M² (969 FT²)
30 HP
Optional: 50 HP
About the GS 40
Naval architecture: Matteo Polli
Deck and Interior Design: Nauta Design
Shipyard: Cantiere del Pardo
