INTENDED TO LAST OVER TIME

INTENDED TO LAST OVER TIME

NEW LIFE TO THE MYTH


Inspired by the lines of the Grand Soleil 52 originally designed by German Frers in 1987, this new addition marks the return of a legendary model. At the time, approximately sixty units were produced of a yacht described as “a masterpiece destined to last”. Prophetic words indeed: the new Grand Soleil 52 Performance, starting from the Cantiere del Pardo concept, was designed by the proven duo Matteo Polli and Nauta Design and takes up the elegance of its progenitor (starting with the Navy blue lines of the beautiful line) and the same harmony of shapes which, then as now, translates into stability and performance.


Intended for competent and passionate owners who do not want to compromise on comfort and performance, the Grand Soleil 52 is part of the successful Grand Soleil Performance line and is available in two versions, “Performance” and “Race”, to satisfy the needs of the more sporty customers and the needs of people who prefer fast cruising to regatta courses.

THE PERFORMANCE VERSION


The “Performance” version provides an “easy sailing” deck and sail plan with 4 aft winches, mainsail sheet with fixed point, self-tacking jib (std.) and carbon bowsprit (std.). The cockpit is perfectly usable by guests, thanks to the choice of recessing all rigging.

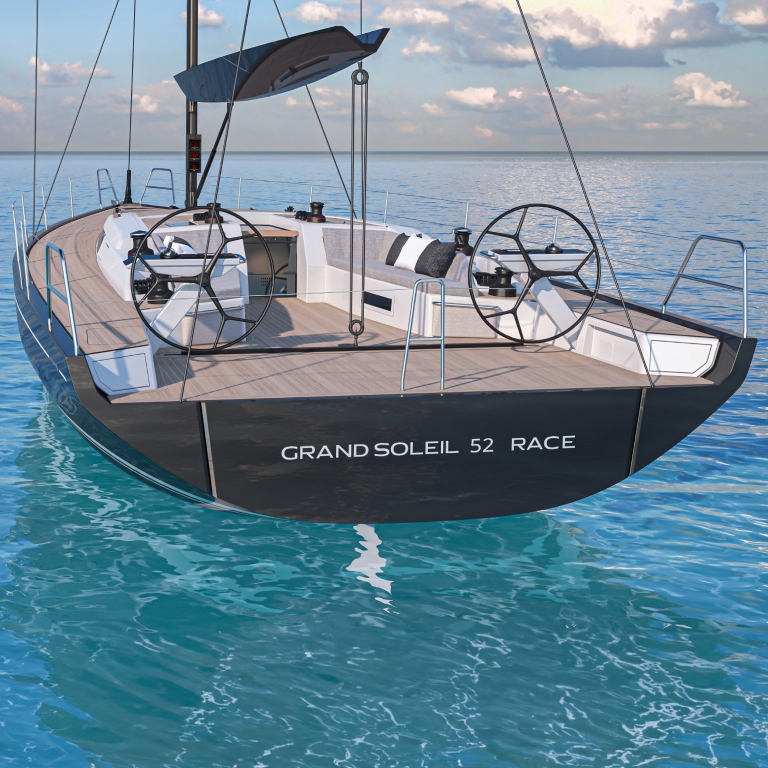

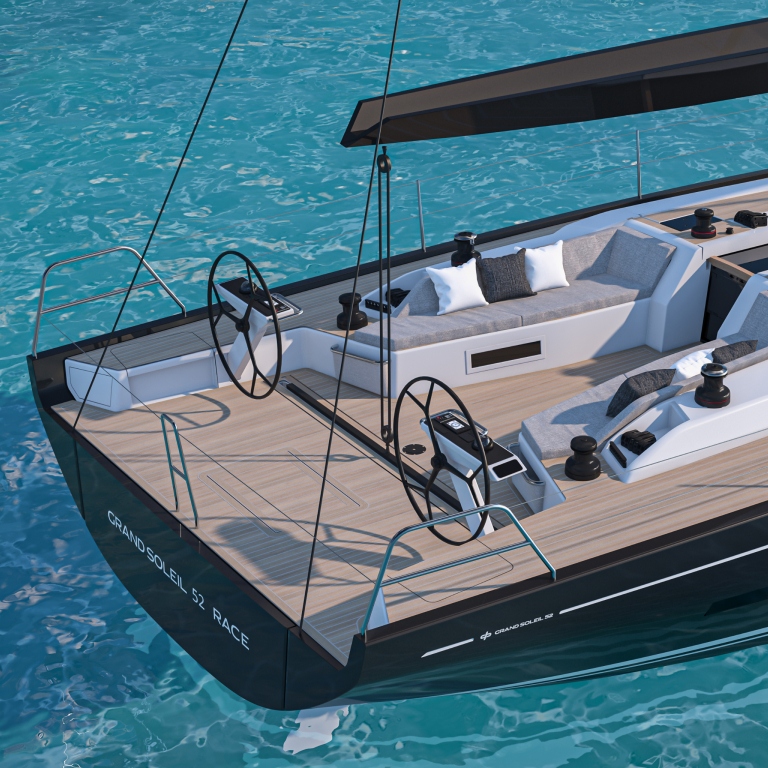

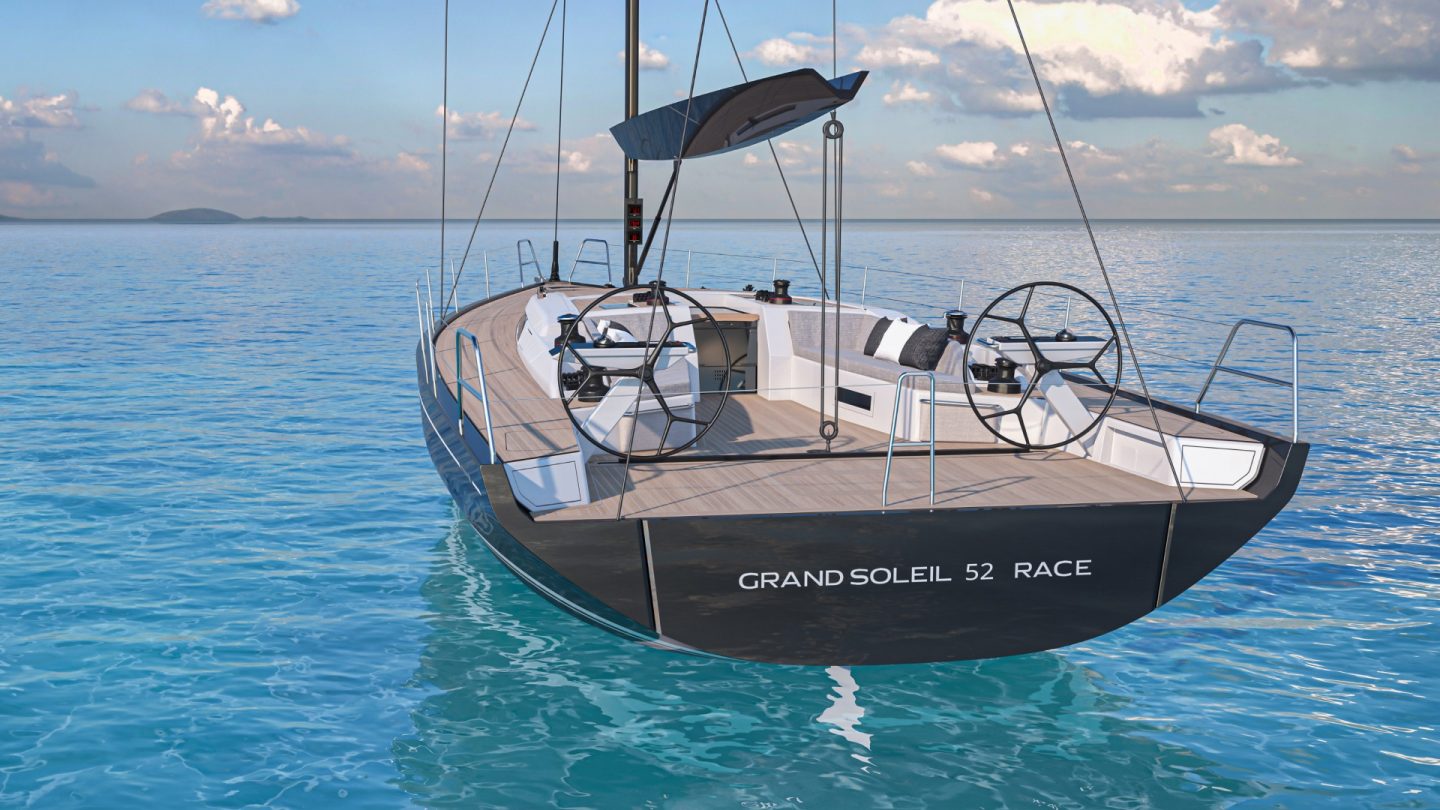

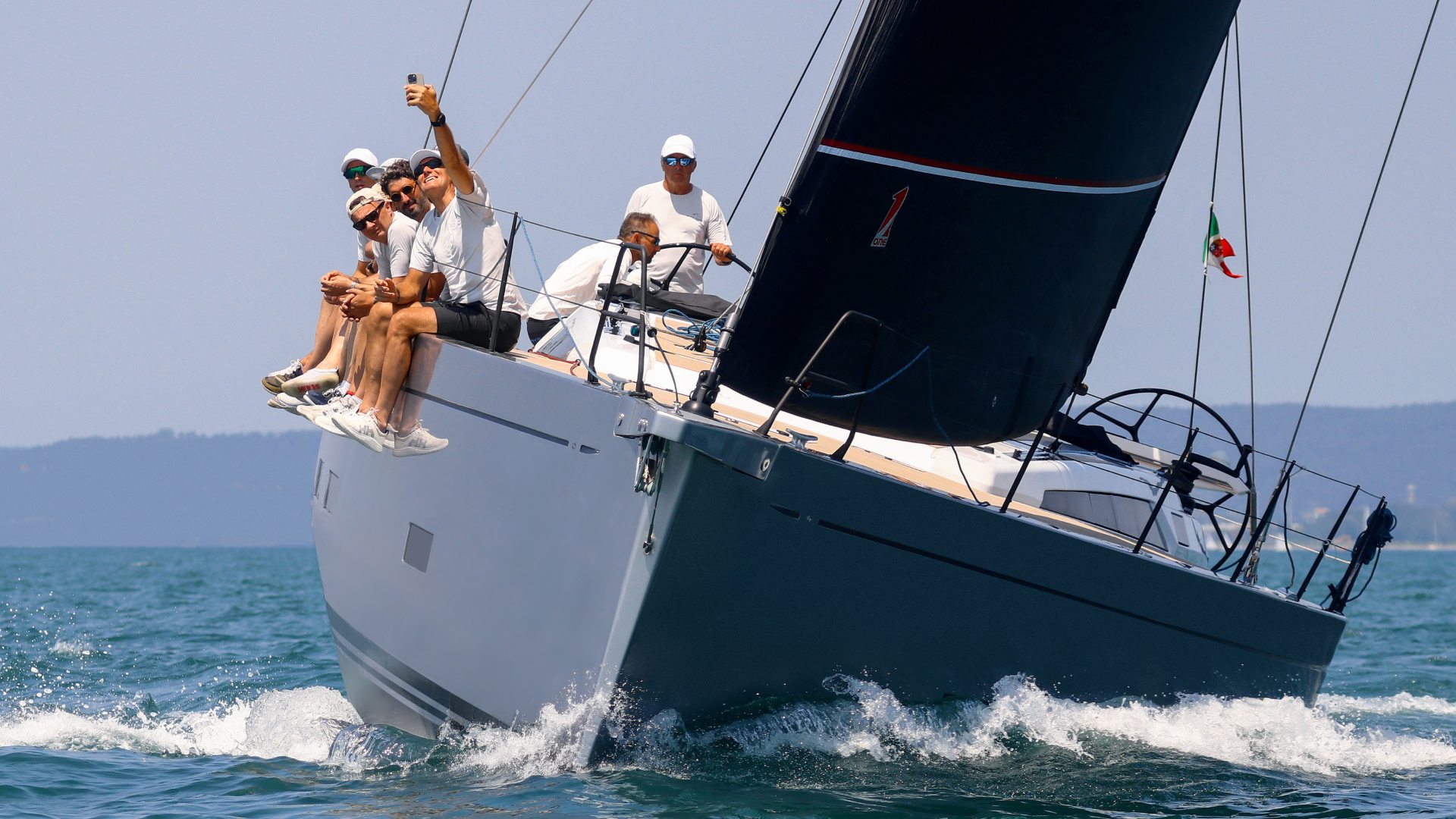

THE RACE VERSION

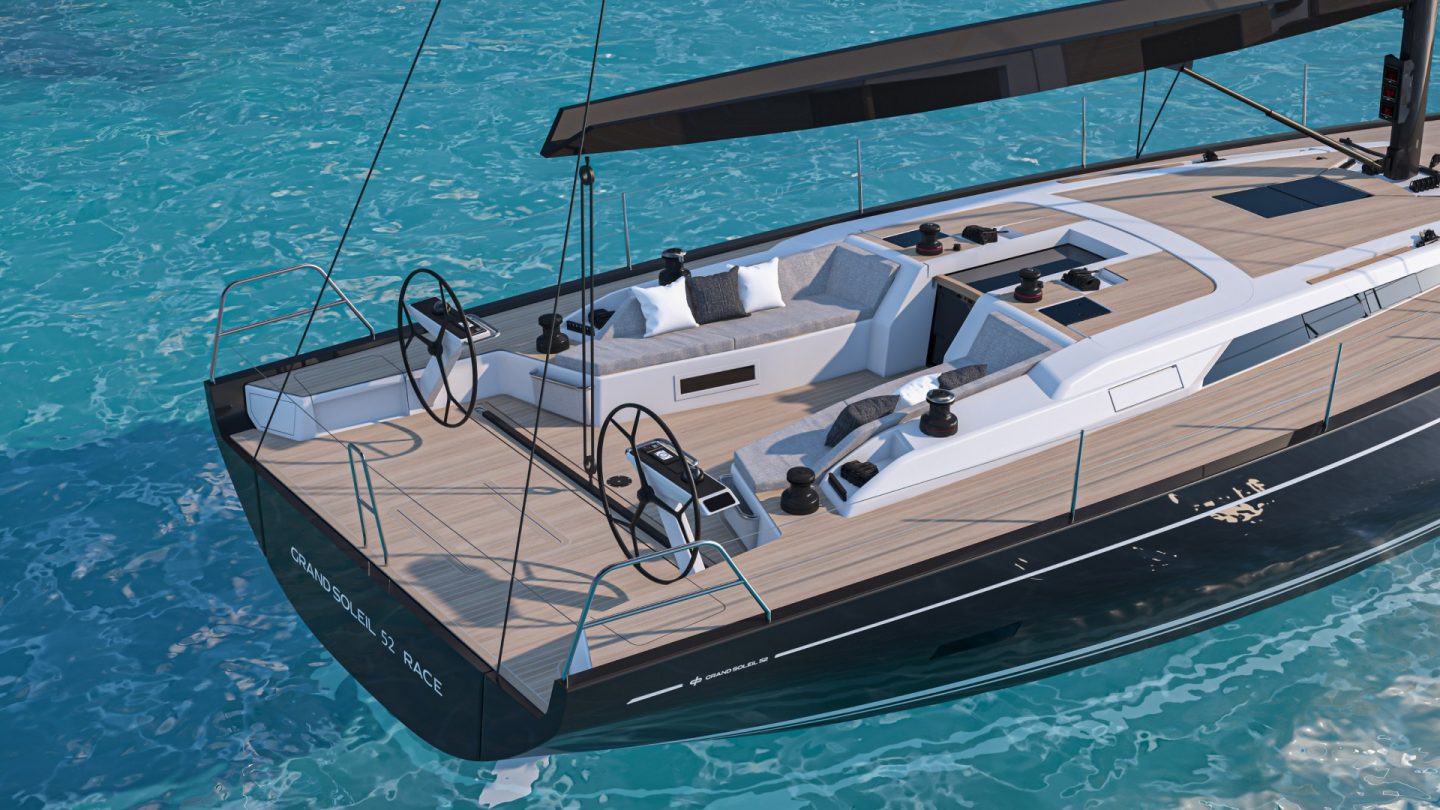

The “Race” version, however, features 6 winches, longitudinal rails for the jib, recessed mainsail traveller, larger sail plan and a carbon bowsprit that is 90 cm longer than the standard version.

INTERIORS

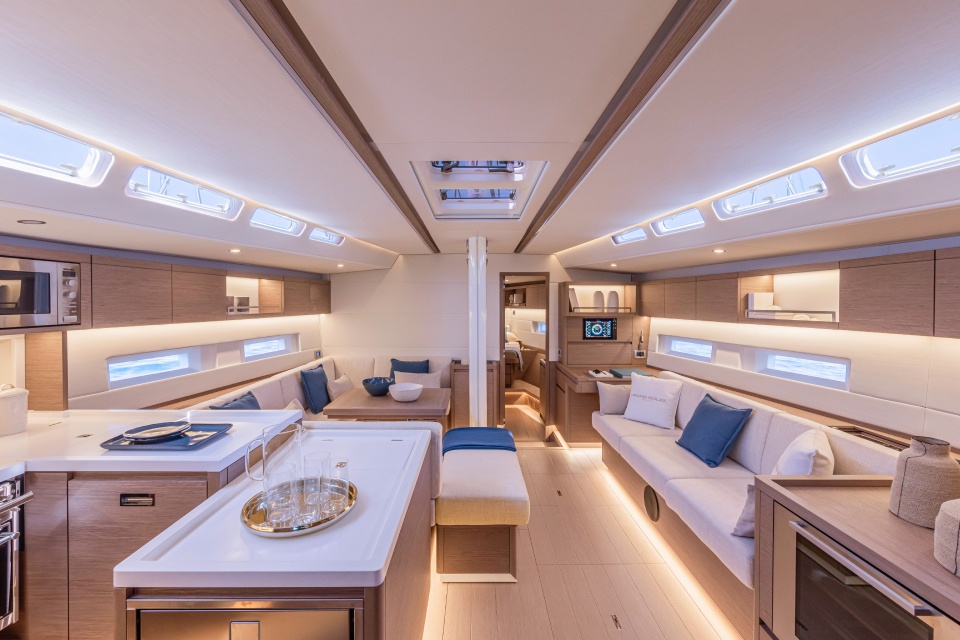

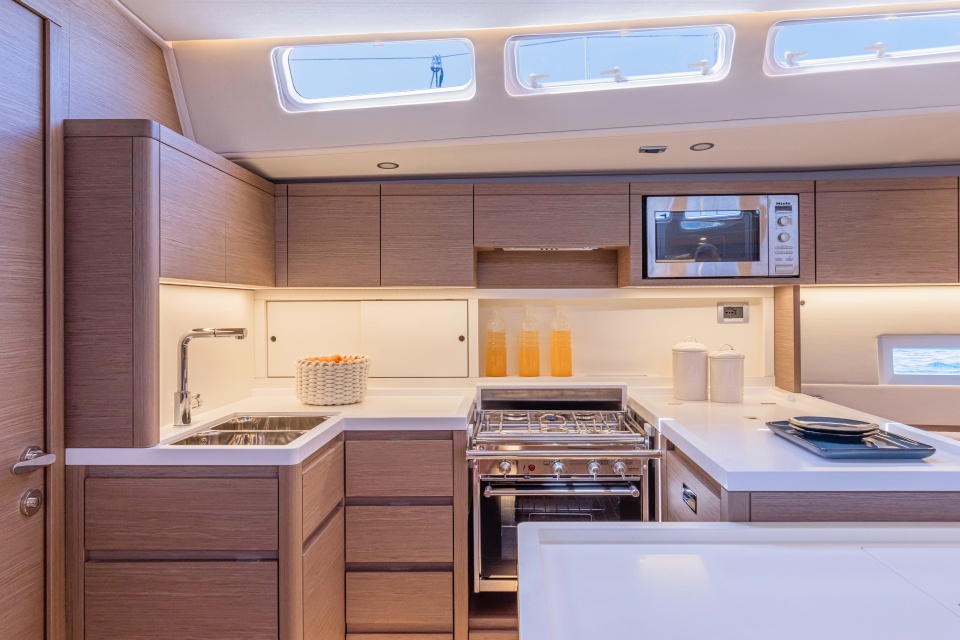

Built entirely in sandwich plate with composite wood compartmentalisation bulkheads, the Grand Soleil 52 Performance has been studied down to the smallest detail to make the most of its space and offer living areas large for a yacht this size, without affecting the weight. The large dinette features the chart area in the bow, big storage compartments and an ergonomic and fully equipped C-shaped galley (with 3 fridge-freezers offering 172 litres of storage space), to ensure a pleasant stay on board even for long periods.

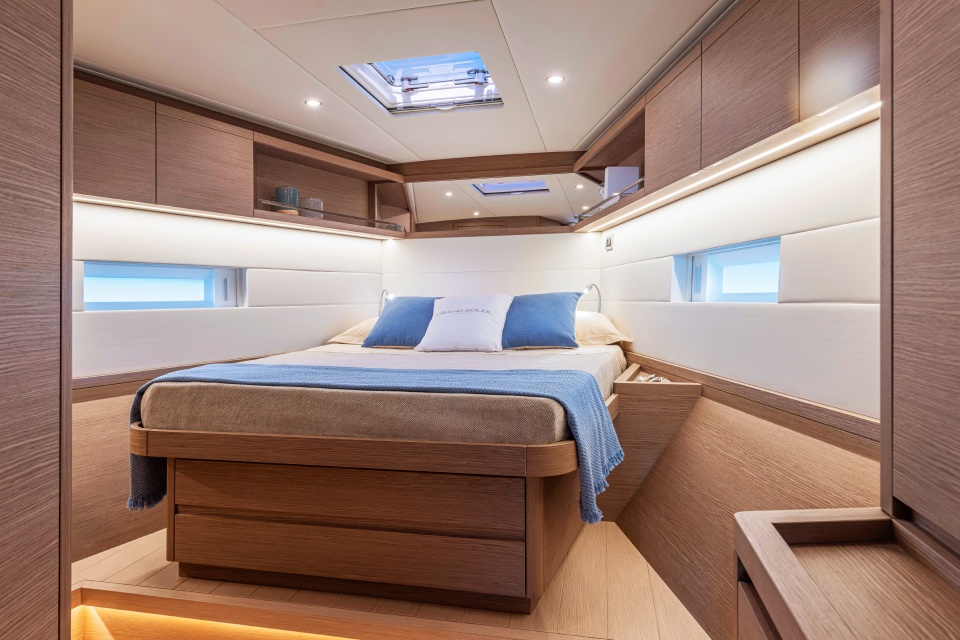

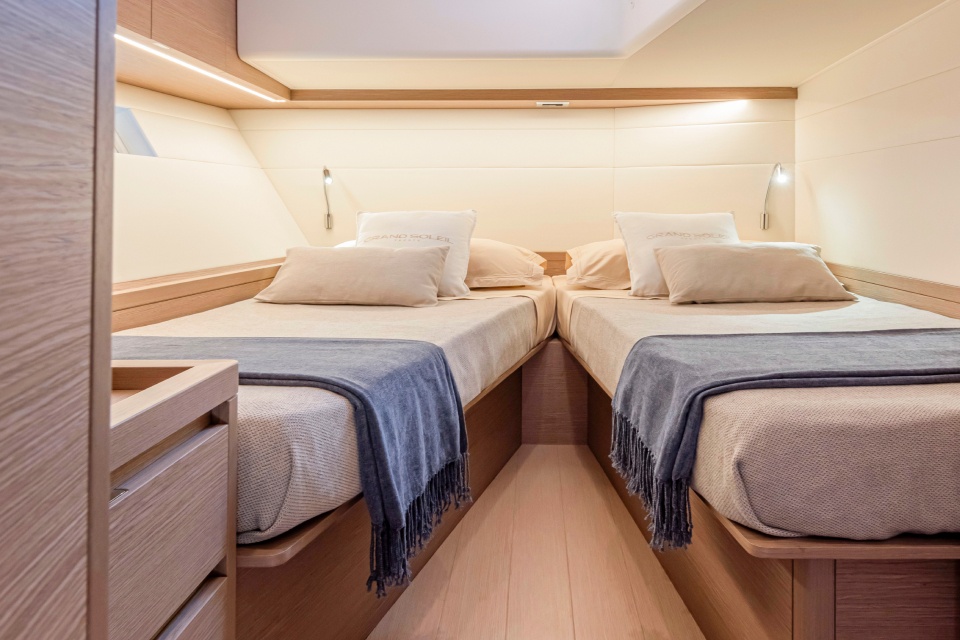

The interior layout includes three cabins and three bathrooms: the master cabin in the bow with a large bathroom and shower stall, the double cabin in the stern with a dedicated bathroom, and the vip double cabin (std.) with a bathroom, shower stall, and the possibility of direct access from the dinette. The vip cabin can also have twin beds (opt.).

Owners can choose among different essences, such as oak, grey oak or teak; in all cases, chromatic elegance is ensured by the contrasting floorboards.

A MADE-TO-MEASURE
APPROACH

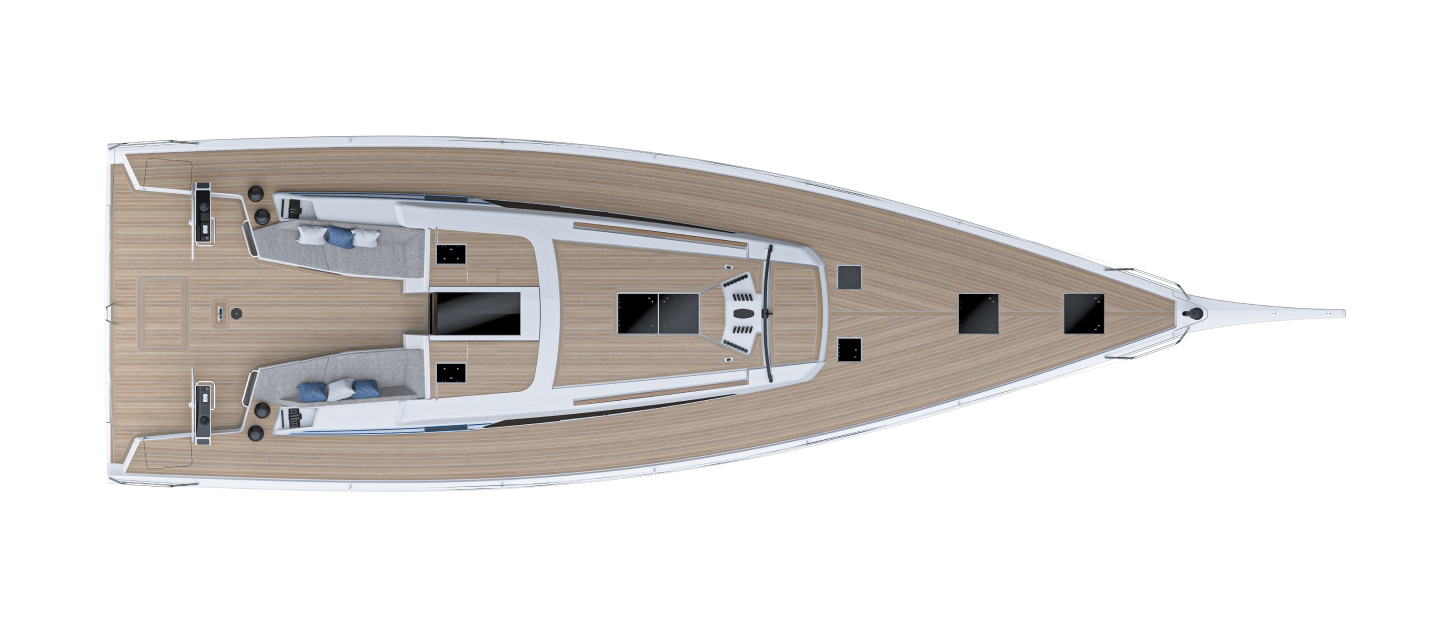

TOP VIEW GS 52 PERFORMANCE

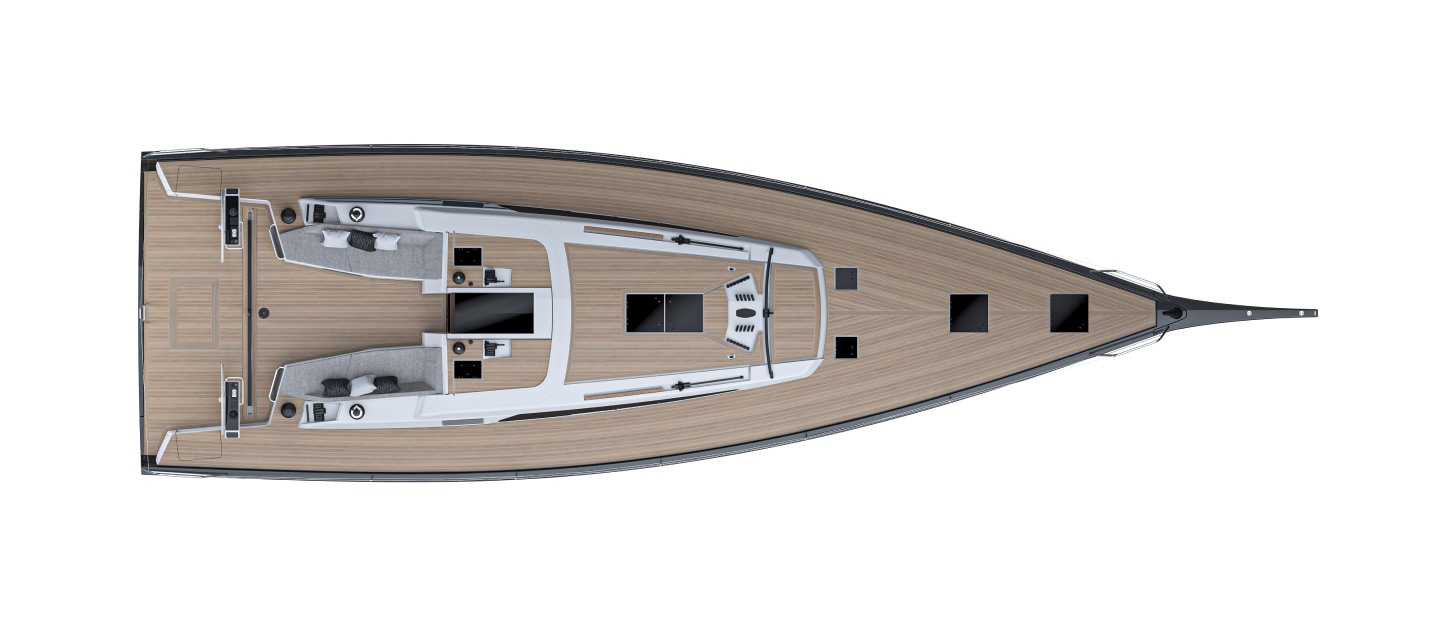

TOP VIEW GS 52 RACE

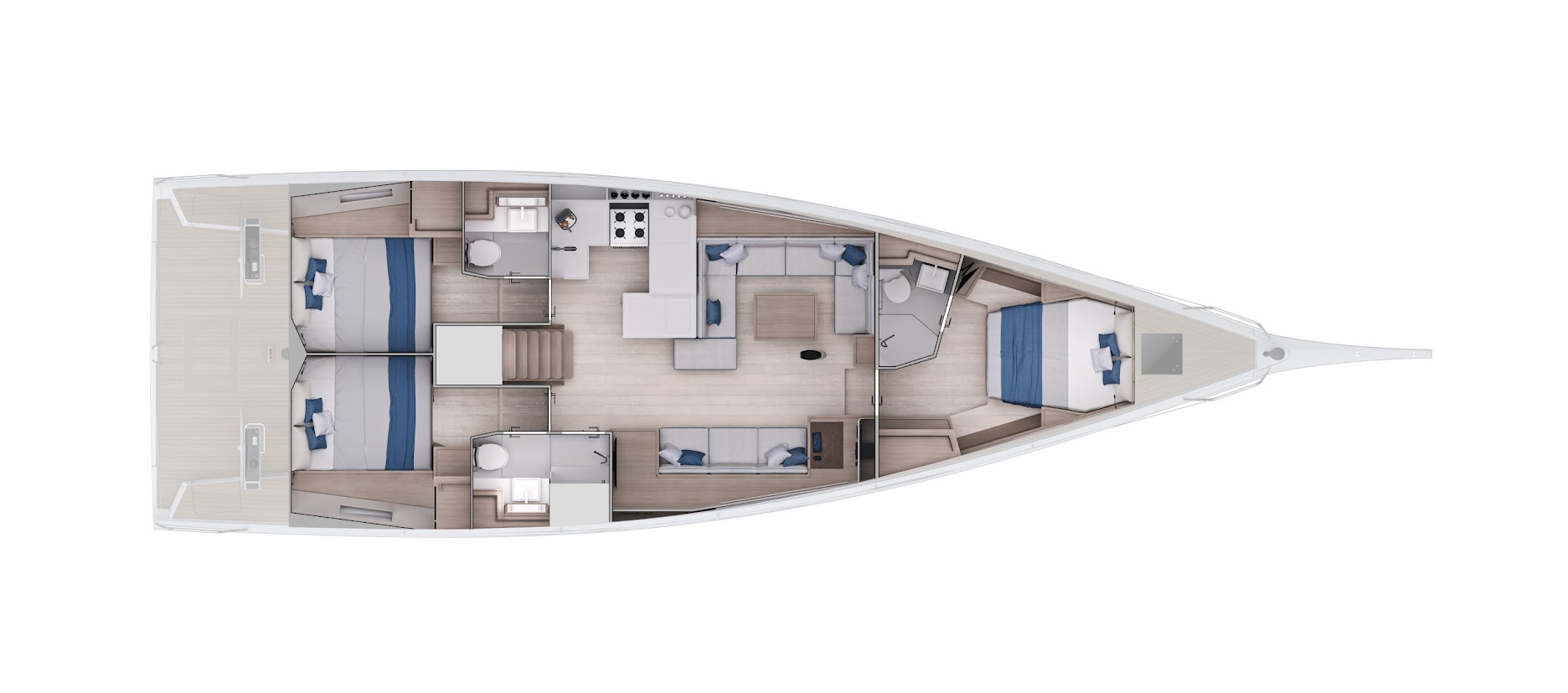

INTERIOR VIEW STD.

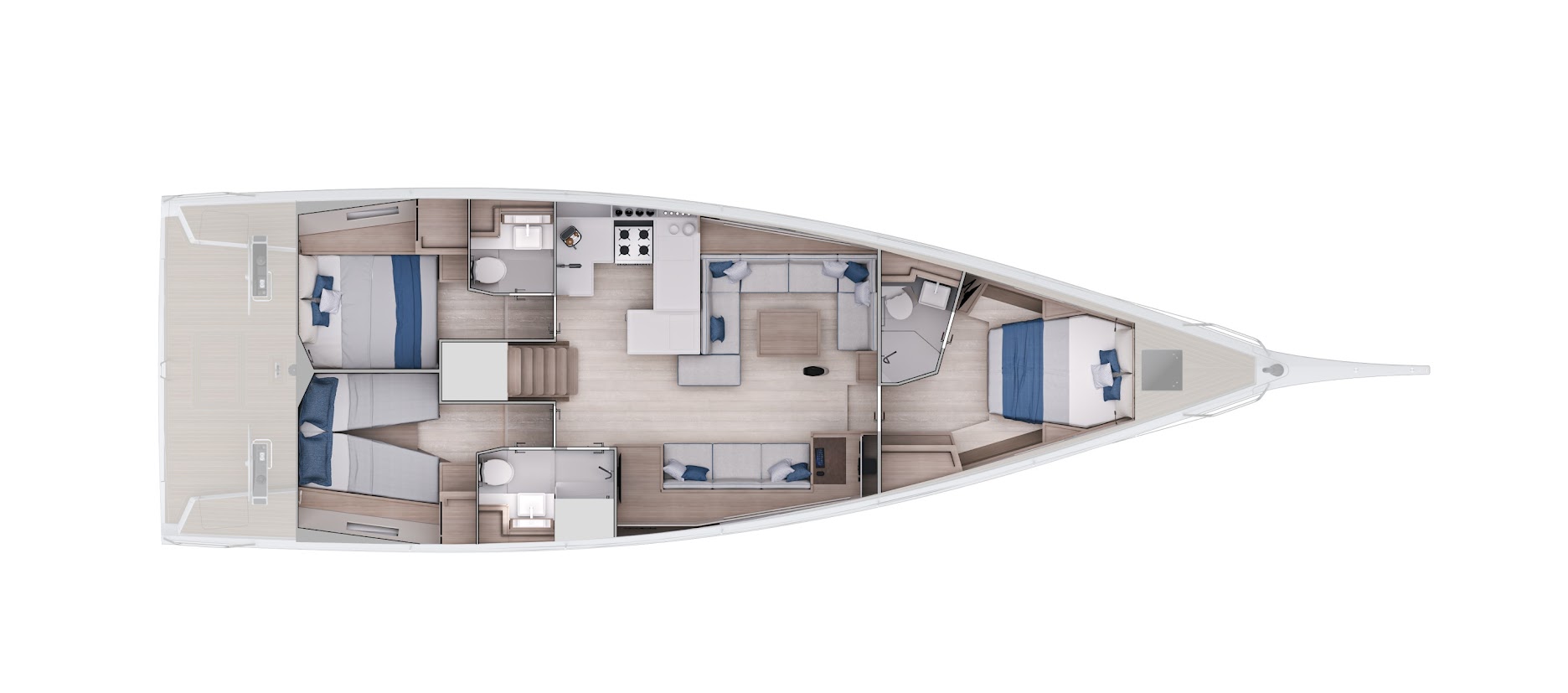

INTERIOR VIEW OPT.

TECHNICAL SPECIFICATION

HULL LENGHT

16.2 m | 53.2 ft

DISPLACEMENT

16.5 t | 36376 LB

WATER TANK

600 l approx | 159 GAL approx

BERTHS

6/8

MAX BEAM

5.15 m | 16.11 ft

ENGINE

75 HP Volvo (opt. 80 HP Yanmar)

FUEL TANK

400 l approx | 106 GAL approx

DRAFT

2.9 m | 9.6 ft (opt 2.30 m | 7.7 ft & 2.70 | 8.10 ft)

Overall length | performance

17.05 m | 55.11 ft

gennaker area | performance

250 m² | 3014 ft²

MAINSAIL AREA | performance

95 m² | 1023 ft²

self-tacking jib | performance

62 m² | 667 ft²

Overall length | race

17.95 m | 58.11 ft

gennaker area | race

280 m² | 2691 ft²

MAINSAIL AREA | race

100 m² | 1076 ft²

self-tacking jib | RACE

65 m² | 700 ft²

Overall Length

HULL LENGTh

Waterline Lenght

Max Beam

DRAFT STANDARD

DRAFT OPTIONAL

DISPLACEMENT

Fuel TANK

Water Capacity

engine STANDARD

engine OPTIONAL

BERTHS

17,05 m | 55,11 ft

16,20 m | 53,20 ft

18,20 m | 59,72 ft

5,15 m | 16,11 ft

2,90 m | 9,60 ft

2,30 m | 7,7 ft & 2,70 m | 8.10 ft

16,5 t | 36.376 lb

400 l approx. | 106 GAL approx.

600 l approx. | 159 GAL approx.

75 HP

80 HP

6/8


About the GS 52

Naval architecture: Matteo Polli
Deck and interior design: Nauta Design
Shipyard: Cantiere del Pardo
CE Category: “A” OCEAN
